Airport Fence

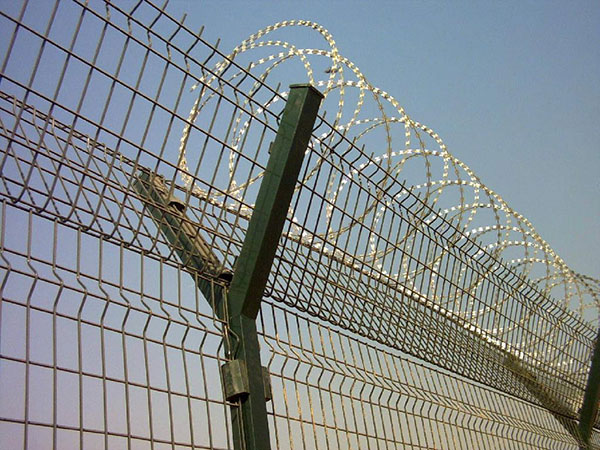

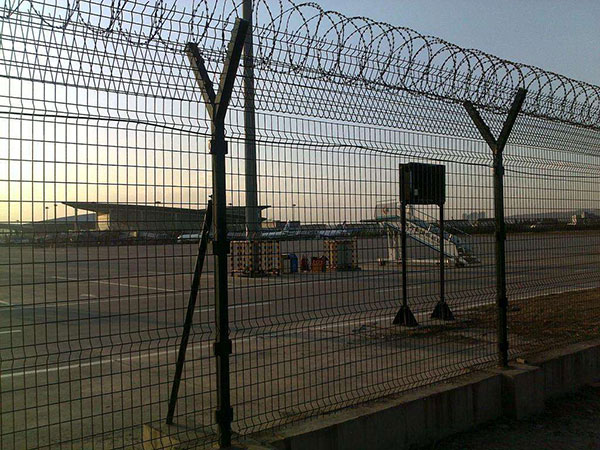

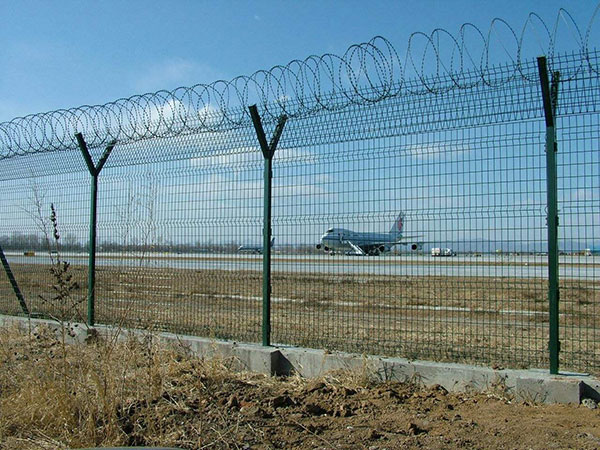

Welded wire mesh airport fence, this kind of fence is made by low carbon steel welded mesh panel, steel posts, barbed wire or razor wire and other accessories. Based on the "V" shape top with razor wire, this system offers economically priced perimeter protection. Due to the special design of the fence, this system is very hard to climb or break, and more secure than the commen wire mesh fence. This product is providing highest perimeter security for an affordable price.
Dimension:
1)Panel
Mesh | Wire Thickness | Surface Treatment | Panel Width | Panel Height | Fence Height | |
Big Panel | 50x100mm | 4.00mm | Gal.+ PVC coated | 2.50m | 2030mm | 2700mm |
2230mm | 3000mm | |||||
2430mm | 3500mm | |||||
V panel | 530mm | 2700mm | ||||
630mm | 3000mm | |||||
730mm | 3500mm |
2)Y post
Profile | Wall Thickness | Surface Treatment | Length | Base Plate | Rainhat |
60x60mm | 2.0mm | Gal.+PVC coated | 2800mm I+530mm V | Available | Plastic or Metal |
| 3000mm I+630mm V | |||||
| 3200mm I+730mm V |
3) Concertina razor wire
| Type | Core wire /Blade thickness | Surface Treatment | Length | Out side diameter | Clips |
| BTO-22 | 2.5/0.5mm | Hot dipped galvanized | 8-10m/roll | 500mm | 3 lines |
| 600mm | |||||
| 700mm |
Razor wire can be in concertina coils or straight razor lines.
Materials: Galvanized wire and galvanized metal sheet.
Razor barbed type: BTO-10, BTO-12, BTO-15, BTO-18, BTO-22, BTO-25, BTO-28, BTO-30, CBT-60, CBT-65.
Razor coil diameter:450, 500, 600 700, 800, 900, 960, 980mm.
Coating and Warranty
The High security fence are manufactured using galvanized steel wire with super-durable powder coating assures a long service life for the fence system. Our powder coating material is the top brand like AkzoNobel, which provides the industry's Highest Weather-ability and Gloss Retention in U.V. exposure.
